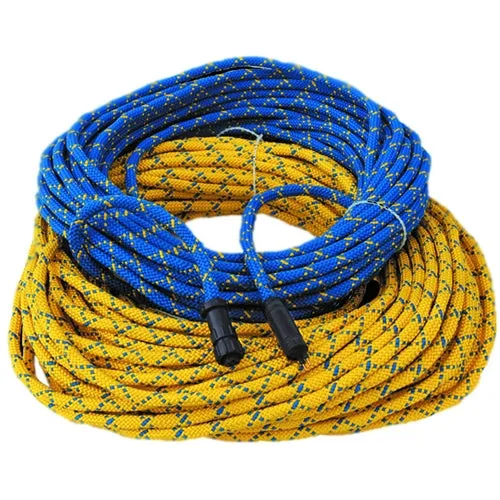

CR-4 Standard 4 Wire Comm Rope
CR-4 ComRope is 100% Polyester, 7/16″ static kernmantle rope designed with four specially configured wires down the center. We offer the CR-4 by the foot but also sell it complete with the connectors on each end.
Material:100% Polyester, Kernmantle
Wires: 4 wires — Quad 4 Balanced Cable
Size: 7/16″ with wire
Colors: Yellow with Blue Strike or Blue with Yellow Strike
Length: Maximum roll = 1,000′ (also sold by the foot)
Breaking Strength of Rope with Wire: 800 lbs (average) rope will break
CONFIGURATIONS:
| TENDER’S END | DIVER’S END |
| AMP-4M, 4 pin male conn. with gripper ring | AMP-4M, 4 pin male conn. with gripper ring |
| AMP-4M, 4 pin male conn. with gripper ring | Female 4 socket marsh marine conn. |
| Banana plugs (Red & Black) | Female 4 socket marsh marine conn. |
| Banana plugs (Red & Black) | AMP-4M, 4 pin male conn. with gripper ring |
| Banana plugs (Red & Black) | Hi-USE® OTS Connector |
| AMP-4M, 4 pin male conn. with gripper ring | Hi-USE® OTS Connector |
